Post Driver Rental

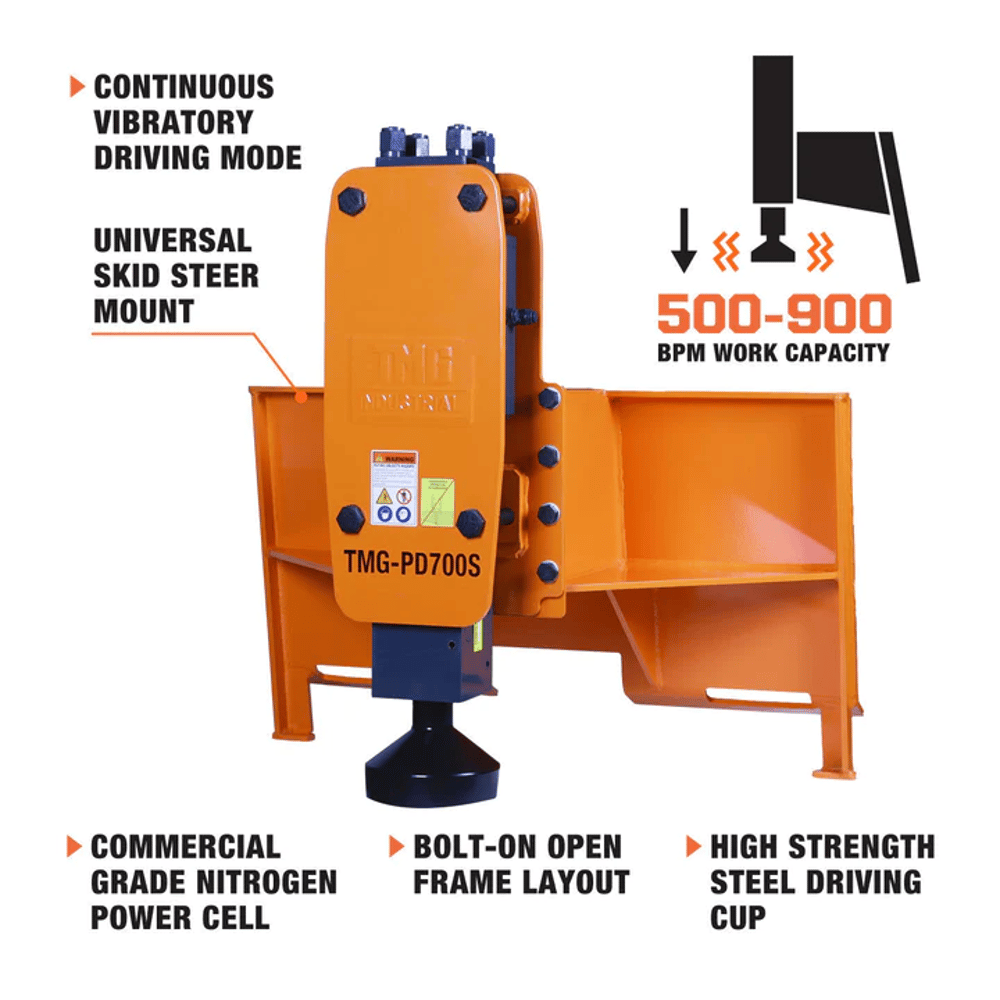

The TMG-PD700S Skid Steer Post Pounder is trusted by contractors, farmers and acreage homeowners across North America to install their fence posts and piping. Simple to attach hydraulic lines and a bolt-on, open frame mounting plate made of heavy gauge steel allow for a smooth and secure hook up to your machine. Easily set up a property perimeter, stand signs or put in agricultural fencing with this powerful post driver hammer.Will accommodate posts up to 8” in diameter with a solid steel driving cup that efficiently transfers power from the piston to the object being struck. Four through bolts tightly affix the front/back head and cylinder of the post pounder for a durable construction that can handle its 700 ft-lb energy and 500-900 BPM work capacity.Located in the back head of the hammer is a cushion chamber charged with nitrogen (N2) gas that compresses during upward strokes of the piston. This serves to provide maximum absorption of piston recoil, efficiently storing this energy for the next blow. Continuous vibratory drive motion means posts will be in the ground in no time at all. Allows you to work smarter and protect your body from unnecessary labour.

Specifications

• Operating weight: 1100 lb
• Energy class: 700 ft-lb
• Skid steer lifting capacity required: 1500 lb
• Skid steer power recommended: 30-70 HP
• Hydraulic flow: 9.5-16 GPM
• Working pressure: 1600-2000 PSI
• Chisel shaft diameter: 68mm
• Pounding rate: 500-900 BPM
• Steel plate frame: ¾”
• Driving cup inside size: 8” diameter
• Hydraulic hose: ½” diameter
• Universal skid steer quick attach mount
